Bringing New Life To Aging Twin Culverts
HydraTite® (Internal Joint Seal System)
Market
DOT
Challenge

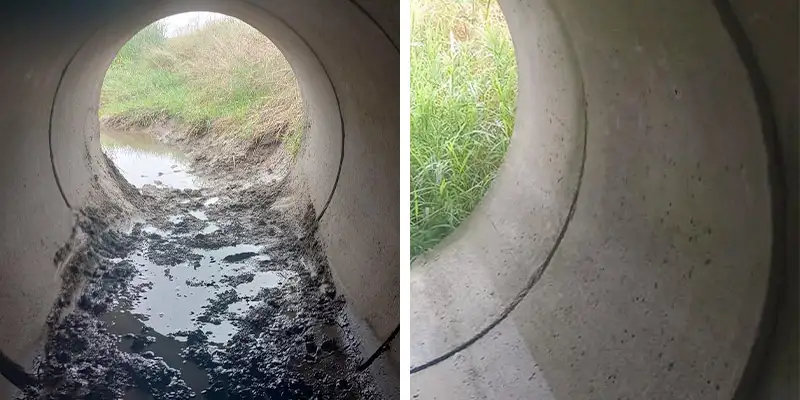

A twin 66” reinforced concrete pipe, functioning as a culvert below a roadway had degraded with age and the joints were experiencing separation and several had become offset. A repair was required to prevent the formation of leaks and sinkholes under the roadway.
Engineered Solution
A solution was needed that would not hinder the above traffic. The engineer selected HydraTite Internal Pipe Joint Seals as the trenchless solution for the joints of concern as HydraTite is a mechanical, long-term solution.
Scope
The culvert’s invert was cleaned out so that the loose debris would not interfere with HydraTech’s seal installation. HydraTech completed minimal concrete resurfacing near the joints to ensure a smooth surface for HydraTite’s proper installation. Then 14 seals were installed in each side of the twin culvert, 26 standard-wide and 2 extra-wide seals in total. The joint preparation and HydraTite installation were completed with just under 16 hours on-site and did not affect the traveling public.
Solution
The HydraTite Internal Pipe Joint Seal proved an economical and practical way to prevent infiltration and exfiltration. This repair brought new life to the culvert and will help protect the traveling public from the eventual formation of sinkholes.

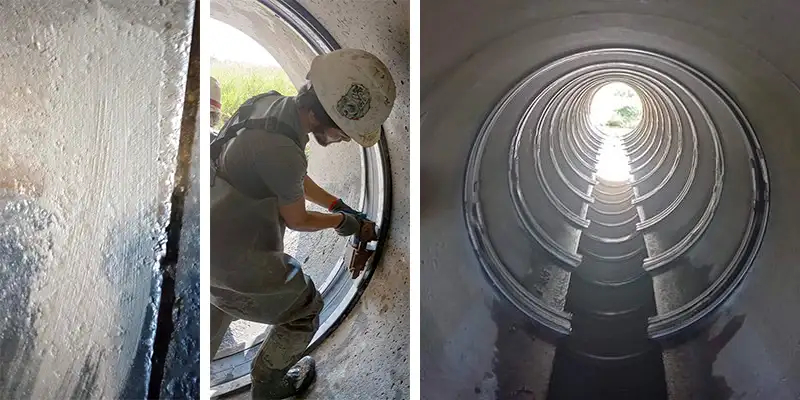

![Bringing New Life To Aging Twin Culverts Four images, exposed joint in a culvert, separated joint with concrete applied to the nearby surface, a technician installing HydraTite over a joint, HydraTite installed over a row of joints.](https://hydratechllc.com/wp-content/uploads/2023/06/ezgif.com-gif-maker-1.webp)

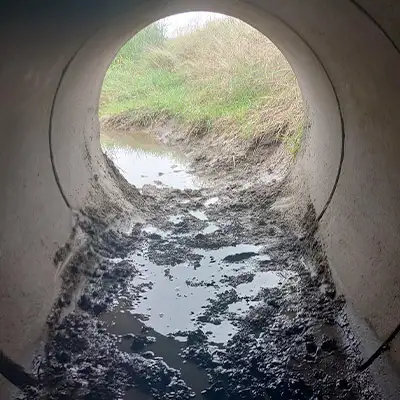

![Pipe-that-has-the-invert-caked-in-thick-mud-400-x-400 The invert of a culvert that is covered in loose debris](https://hydratechllc.com/wp-content/uploads/2022/08/Pipe-that-has-the-invert-caked-in-thick-mud-400-x-400.jpg)

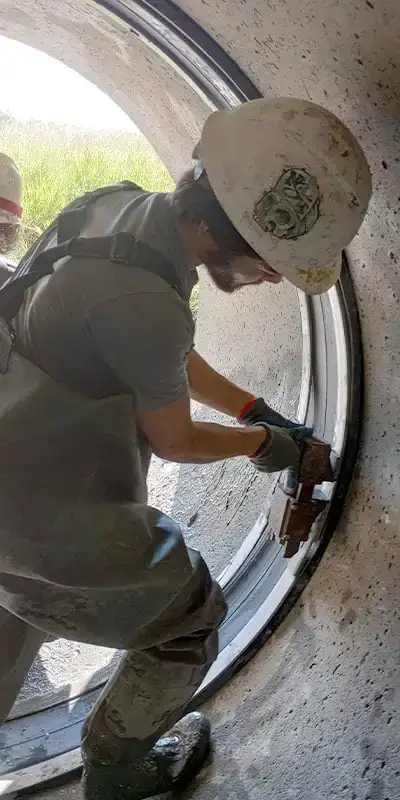

![A-field-technician-expanding-the-retaining-bands-into-place-800-x-400 Field Technician expanding the retaining bands, locking the EPDM rubber in place over a pipe joint](https://hydratechllc.com/wp-content/uploads/2022/08/A-field-technician-expanding-the-retaining-bands-into-place-800-x-400.jpg)

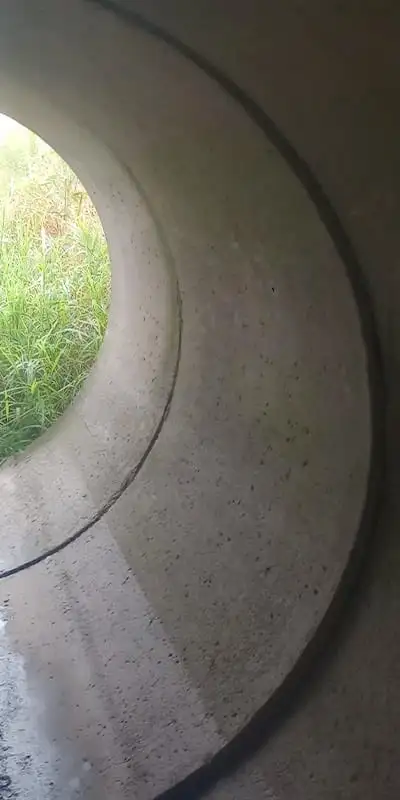

![Exposed-joints-experiencing-separation-and-have-become-offset-400-x-800 two exposed joints in a culvert, the closest of which is offset](https://hydratechllc.com/wp-content/uploads/2022/08/Exposed-joints-experiencing-separation-and-have-become-offset-400-x-800.jpg)

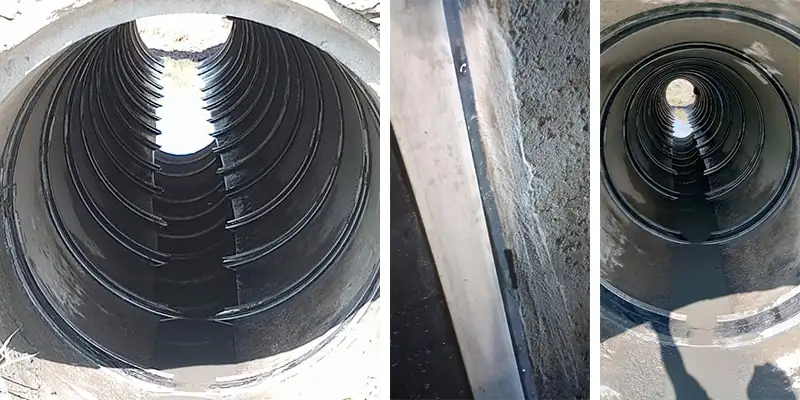

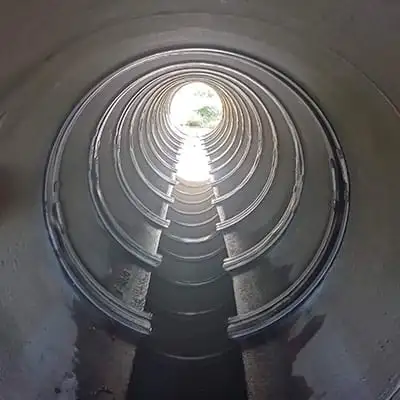

![A-long-row-of-joints-that-are-protected-against-infiltration-and-exfiltration-with-the-HydraTite-Seal-400-x-400 the joints of a pipe protected against infiltration and exfiltration by the HydraTite Internal Pipe Joint Seal](https://hydratechllc.com/wp-content/uploads/2022/08/A-long-row-of-joints-that-are-protected-against-infiltration-and-exfiltration-with-the-HydraTite-Seal-400-x-400.jpg)

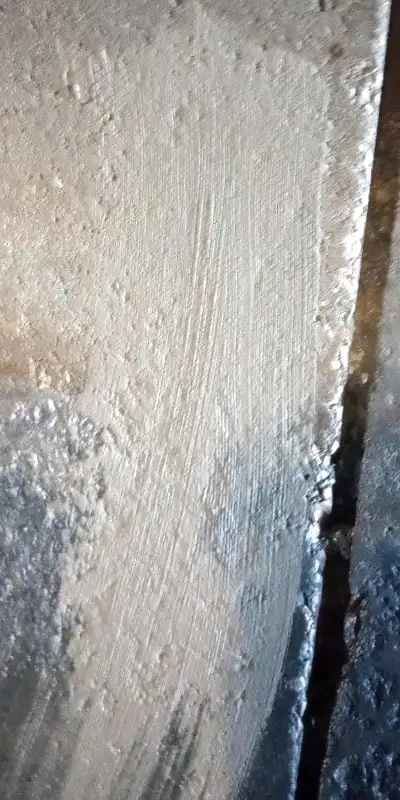

![Concrete-patch-near-a-joint-that-will-be-repaired-with-HydraTite-400-x-800 A patch of concrete used to smooth out the surface of a pipe for the installation of the HydraTite Internal Pipe Joint Seal](https://hydratechllc.com/wp-content/uploads/2022/08/Concrete-patch-near-a-joint-that-will-be-repaired-with-HydraTite-400-x-800.jpg)

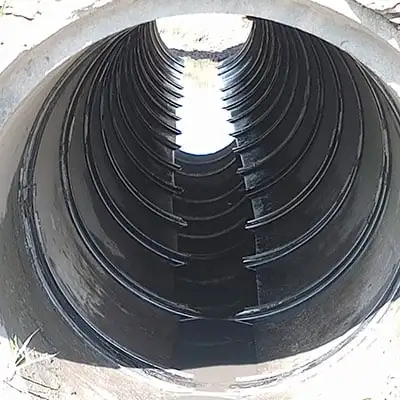

![A-row-of-joints-that-have-been-sealed-wit-the-HydraTite-Seal-400-x-400 the joints of a pipe protected against infiltration and exfiltration by the HydraTite Internal Pipe Joint Seal](https://hydratechllc.com/wp-content/uploads/2022/08/A-row-of-joints-that-have-been-sealed-wit-the-HydraTite-Seal-400-x-400.jpg)
![The-edge-of-a-HidraTite-Seal-that-is-over-a-joint-previously-resurfaced-with-concrete-400-x-800 HydraTite installed over a joint that has a patch of concrete next to it](https://hydratechllc.com/wp-content/uploads/2022/08/The-edge-of-a-HidraTite-Seal-that-is-over-a-joint-previously-resurfaced-with-concrete-400-x-800.jpg)

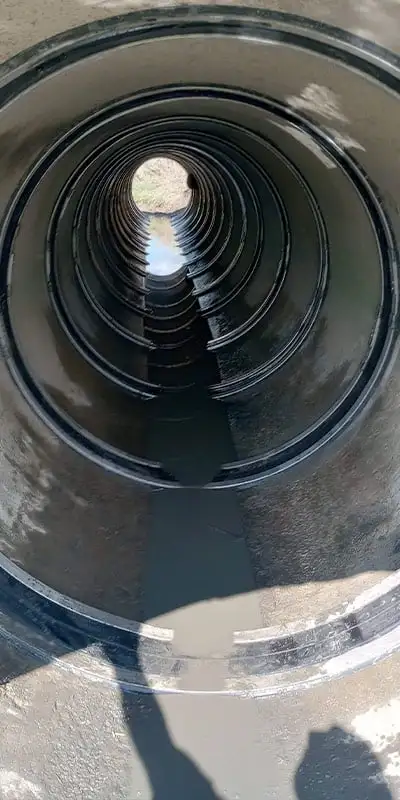

![A-long-stretch-of-pipe-whose-joints-are-repaired-with-the-HydraTite-Seal-400-x-800 the joints of a pipe protected against infiltration and exfiltration by the HydraTite Internal Pipe Joint Seal](https://hydratechllc.com/wp-content/uploads/2022/08/A-long-stretch-of-pipe-whose-joints-are-repaired-with-the-HydraTite-Seal-400-x-800.jpg)

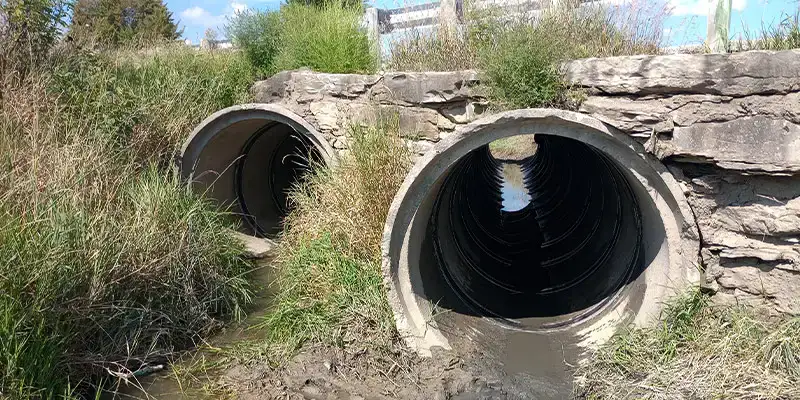

![The-entrance-to-a-pair-of-twin-culverts-that-have-been-repaired-utilizing-the-HydraTite-Seal-800-x-400 the entrance to twin culverts that run below a roadway. HydraTite installed inside the culverts to protect the joints.](https://hydratechllc.com/wp-content/uploads/2022/08/The-entrance-to-a-pair-of-twin-culverts-that-have-been-repaired-utilizing-the-HydraTite-Seal-800-x-400.jpg)
