Installing HydraTite On A DOT Project
HydraTite® (Internal Joint Seal System)
Market
Stormwater
Challenge

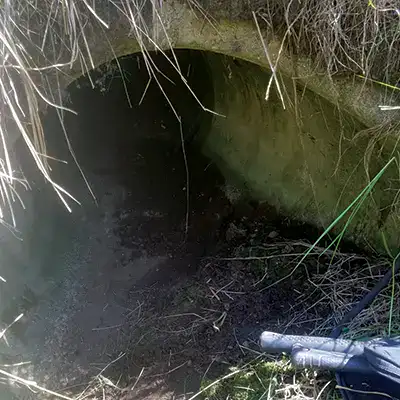

MnDOT discovered two drainage pipes that needed rehabilitation. Both pipes had two joints of concern, one had a diameter of 48” and the other had a diameter of 72”. A trenchless option was preferred.
Engineered Solution
HydraTite Internal Pipe Joint Seals were the selected repair method to avoid excavation.
Scope

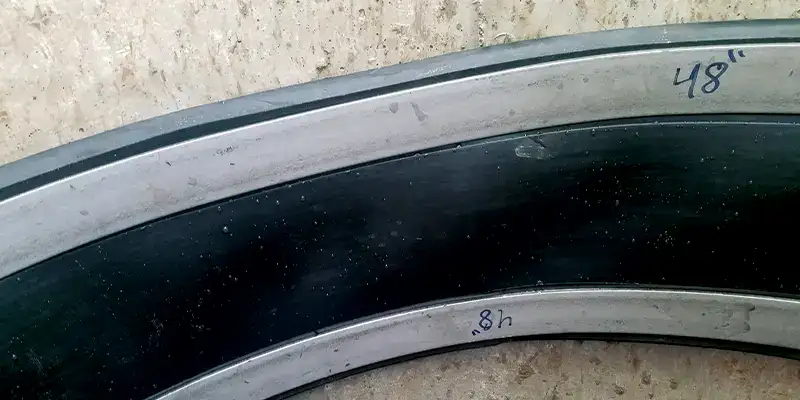

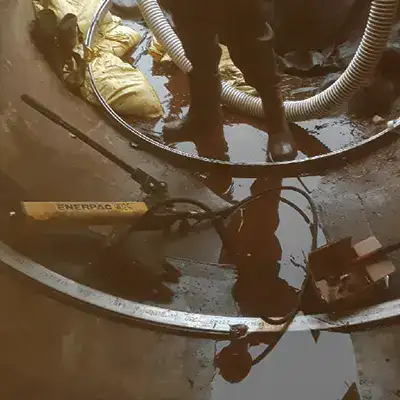

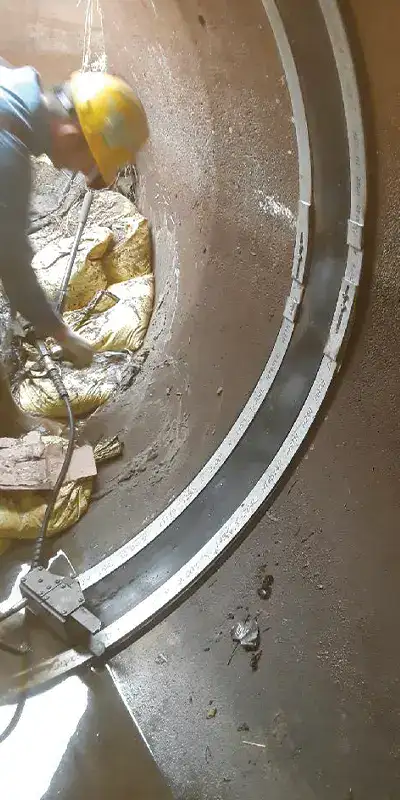

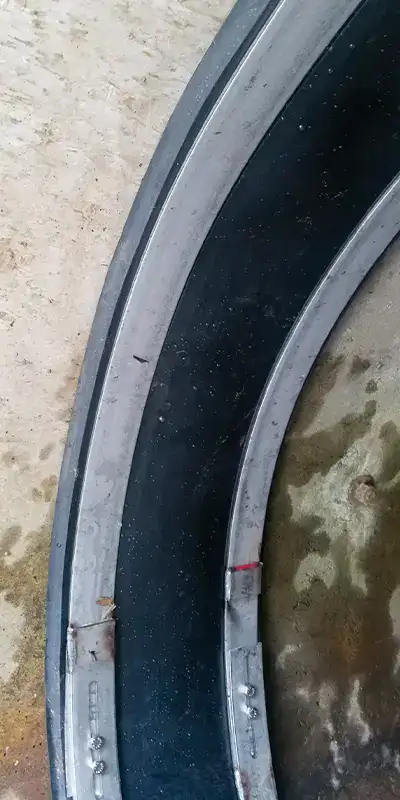

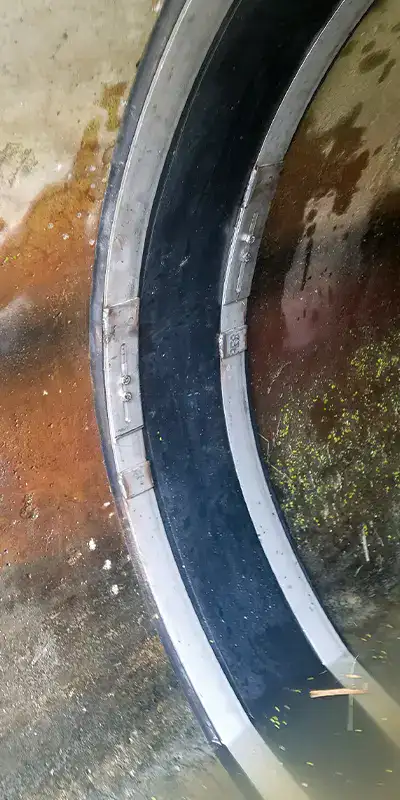

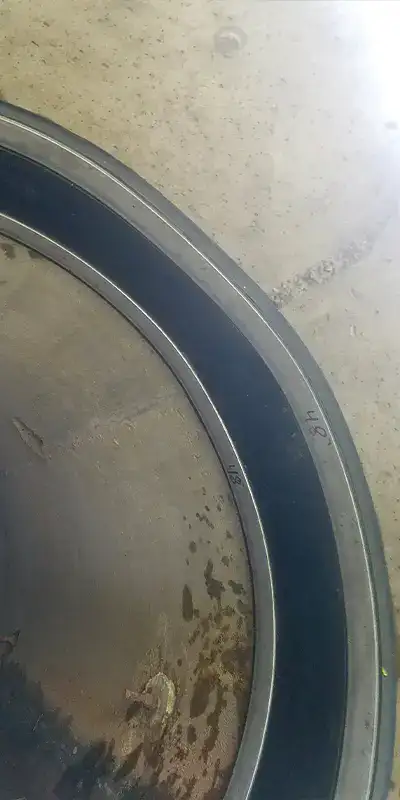

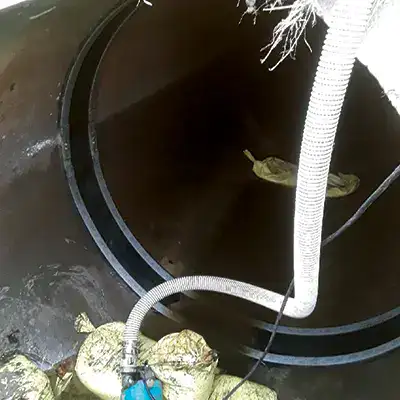

Mud was cleared away from the joints to ensure the seals could seal properly against the interior surface of the pipe. Extra-wide rubber seals were positioned over the joints in the 72” pipe and standard-wide rubber seals were installed over the joints in the 48” pipe. Two retaining bands were positioned into the rubber seals’ designated channels. These bands were expanded utilizing a hydraulic expander and locked in place with wedges. The project was completed in a few days with a crew of only two people.
![6 Images Showcasing HydraTite Installed In Two Pipes Six images showing a PVC pipe repair utilizing HydraTite](https://hydratechllc.com/wp-content/uploads/2024/04/6-Images-Showcasing-HydraTite-Installed-In-Two-Pipes.webp)
Solution
These two pipes were rehabilitated quickly using a solution that will last a lifetime. These four HydraTite seals fortified these joints against leaks.
![Entrance To A Culvert Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/Entrance-To-A-Culvert.webp)
![HydraTite Installed In A Large Diameter Pipes Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/HydraTite-Installed-In-A-Large-Diameter-Pipes.webp)
![HydraTite Installed Over A Joint Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/HydraTite-Installed-Over-A-Joint.webp)
![48 Inch HydraTite Seal 1 Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/48-Inch-HydraTite-Seal-1.webp)
![Tools Near A Joint With Separation Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/Tools-Near-A-Joint-With-Separation.webp)
![48 Inch Pipe Rehabilitated With An Internal Pipe Joint Seal Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/48-Inch-Pipe-Rehabilitated-With-An-Internal-Pipe-Joint-Seal.webp)
![48 Inch HydraTite Seal 2 Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/48-Inch-HydraTite-Seal-2.webp)
![HydraTite Installed Over A Joint To Rehabilitate A PIpe Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/HydraTite-Installed-Over-A-Joint-To-Rehabilitate-A-PIpe.webp)

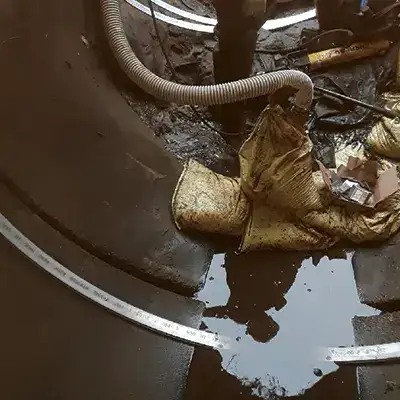

![A Joint With Separation Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/A-Joint-With-Separation.webp)
![HydraTite Installed Over A Joint In A Pipe Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/HydraTite-Installed-Over-A-Joint-In-A-Pipe.webp)
![HydraTite Installed In A Pipe Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/HydraTite-Installed-In-A-Pipe.webp)
![Loocking Down On HydraTite Installed In A Pipe Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/04/Loocking-Down-On-HydraTite-Installed-In-A-Pipe.webp)
