Installing HydraTite Seals
In An Elliptical Tunnel
HydraTite® (Internal Joint Seal System)
Market
DOT
Challenge
The initial installation of a 106” by 68” elliptical tunnel showed active infiltration at the joints. The pipe was new so replacement was not considered. A trenchless remediation was preferred to avoid disrupting the road above.
Engineered Solution
HydraTite Internal Pipe Joint Seals were custom-manufactured to fit this tunnel to provide a trenchless solution for the compromised joints.
Scope
144 extra-wide and 10 double-wide seals were installed in this project. HydraTech sent a technician to train their crew on installation for the first seal. They applied what they learned on the second seal, and in roughly an hour, they had it locked in place. Each seal was air-tested and adjusted as needed. In just a few weeks, 154 joints were sealed in this elliptical tunnel.

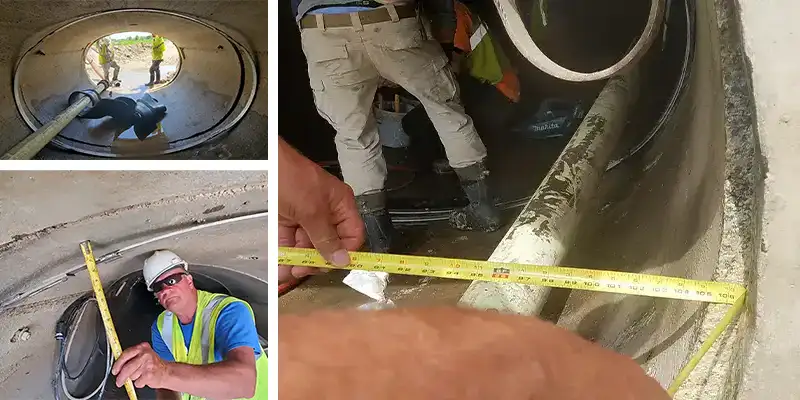

![Multiple Images Of Elliptical Seal Installation Six images showing a PVC pipe repair utilizing HydraTite](https://hydratechllc.com/wp-content/uploads/2024/06/Multiple-Images-Of-Elliptical-Seal-Installation.webp)
Solution
HydraTite provided a lifetime of protection for this elliptical tunnel without requiring the pipe to be excavated. The installation was simple enough to learn and quick enough to make it the obvious choice for this rehabilitation project.

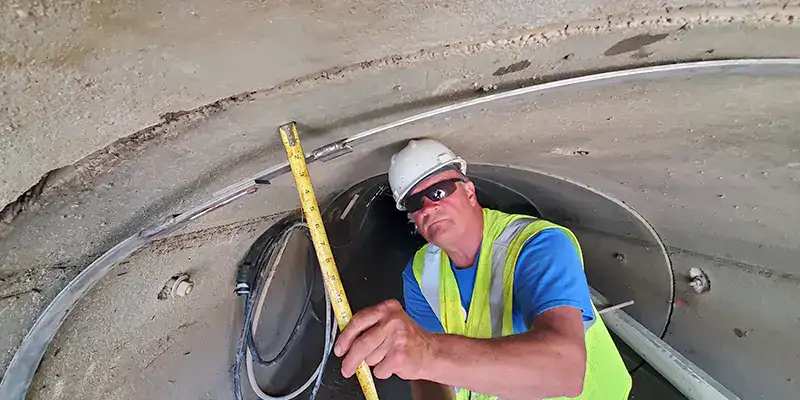

![Measuring An Elliptical Pipe Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/06/Measuring-An-Elliptical-Pipe.webp)

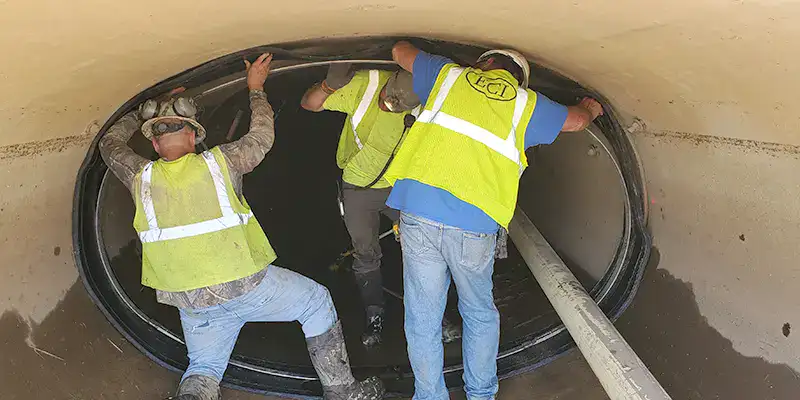

![Placeing A Seal In HydraTite Seal Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/06/Placeing-A-Seal-In-HydraTite-Seal.webp)

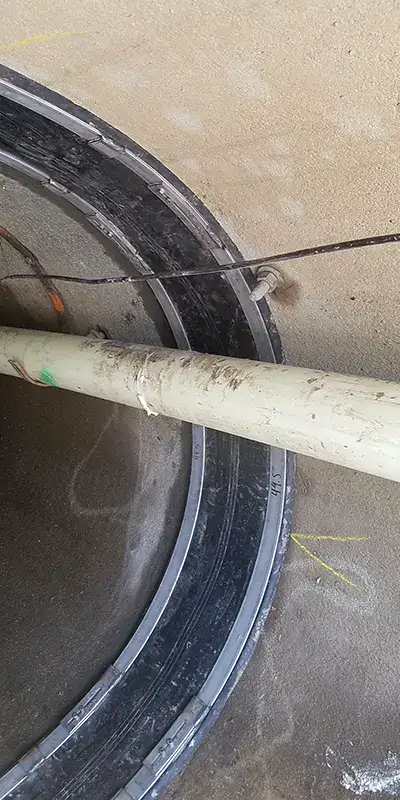

![HydraTite Installed In Elliptical Pipe Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/06/HydraTite-Installed-In-Elliptical-Pipe.webp)

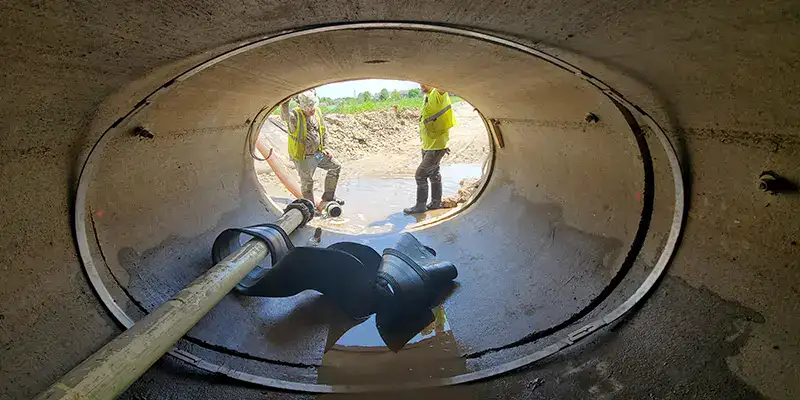

![HydraTite Installed In An Elliptical Tunnel Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/06/HydraTite-Installed-In-An-Elliptical-Tunnel.webp)

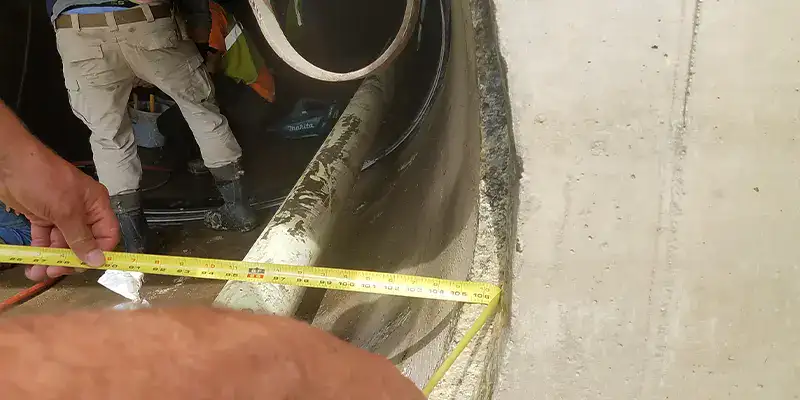

![Measuring An Elliptical Pipe2 Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/06/Measuring-An-Elliptical-Pipe2.webp)

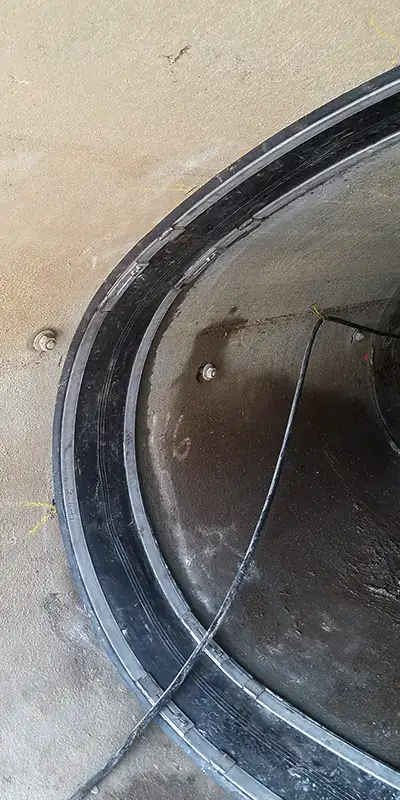

![HydraTite Installed In Elliptical Pipe2 Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/06/HydraTite-Installed-In-Elliptical-Pipe2.webp)

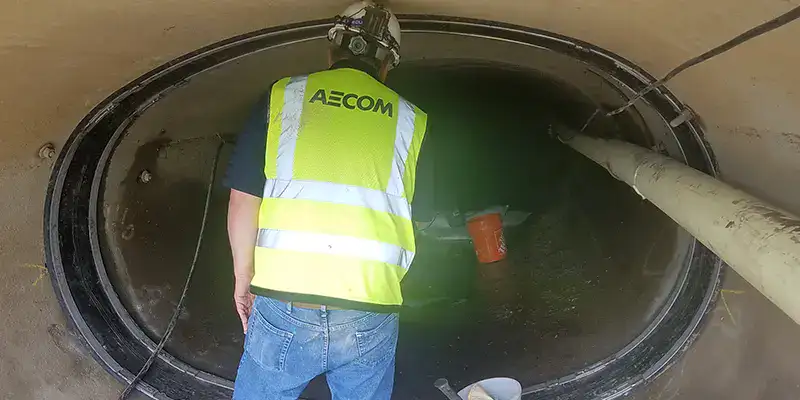

![Inspecting HydraTite Installation In An Elliptical Pipe Joint with an active leak in a green PVC pipe](https://hydratechllc.com/wp-content/uploads/2024/06/Inspecting-HydraTite-Installation-In-An-Elliptical-Pipe.webp)
