Overseeing A Seal Installation

HydraTite® (Internal Joint Seal System)

Market
Drinking Water

Challenge
A leak was discovered in a 96″ drinking water pipe in Montreal, Canada. A trenchless solution was preferred to avoid the cost of dig and repair methods.

Engineered Solution
A single double-wide HydraTite Internal Pipe Joint Seal with a test valve, backing plate, and three retaining bands, was the selected method to rehabilitate this joint without excavation.

Scope

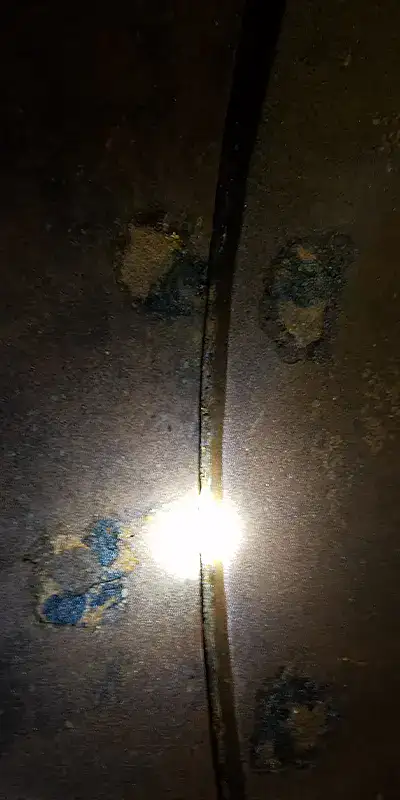

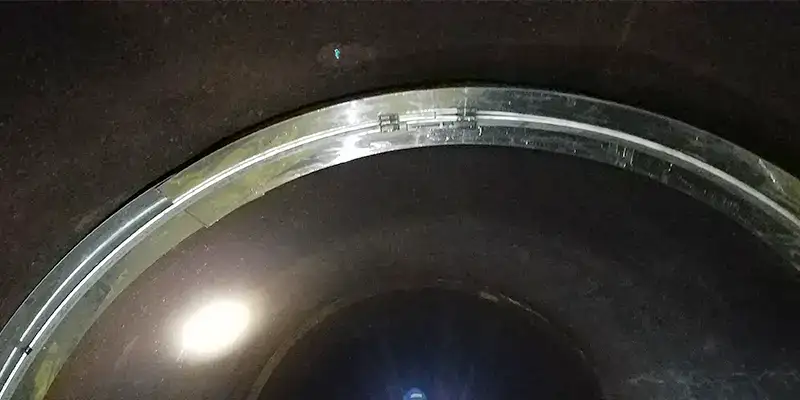

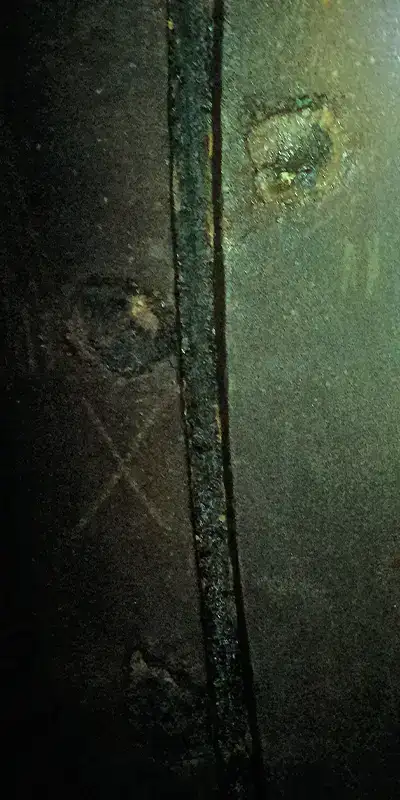

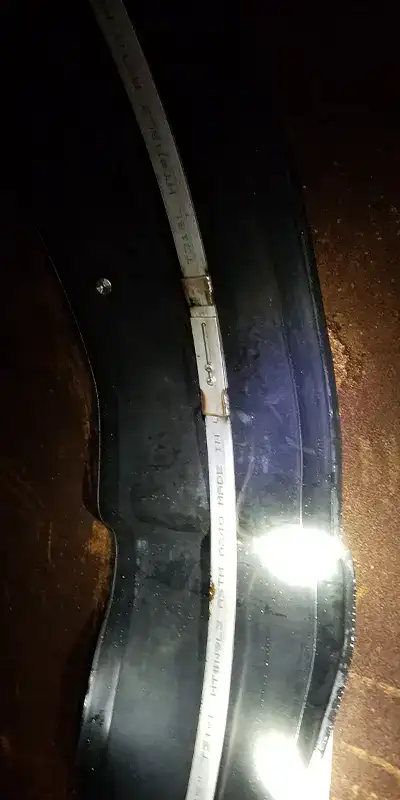

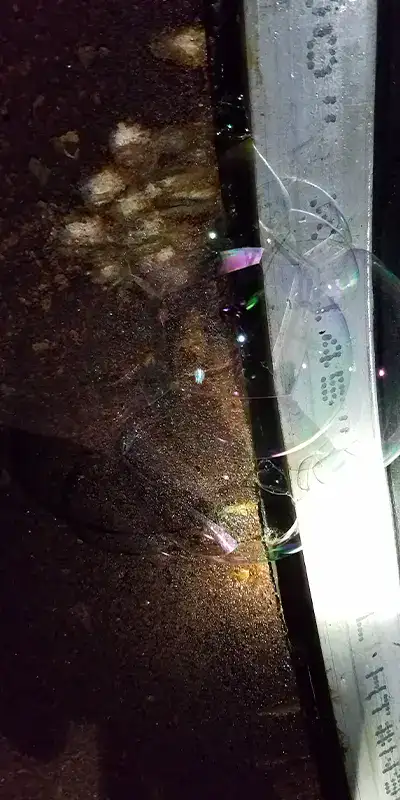

HydraTech personnel oversaw this installation and instructed the client step by step. The interior surface of the pipe near the joint was prepared for installation by eliminating irregularities. The backing plate was positioned over the joint and held loosely in place with a retaining band. The rubber seal was then worked into position. The retaining bands were then put into position, expanded to pressure, and locked in place. The air test valve was then opened and air was pumped behind the rubber. A soapy solution was then applied around the edge of the rubber and inspected for bubbles. Initially, bubbles were found, denoting an area of concern. Adjustments were made and the seal was again air tested. This time no bubbles formed. The project was completed in less than 8-hour work day.

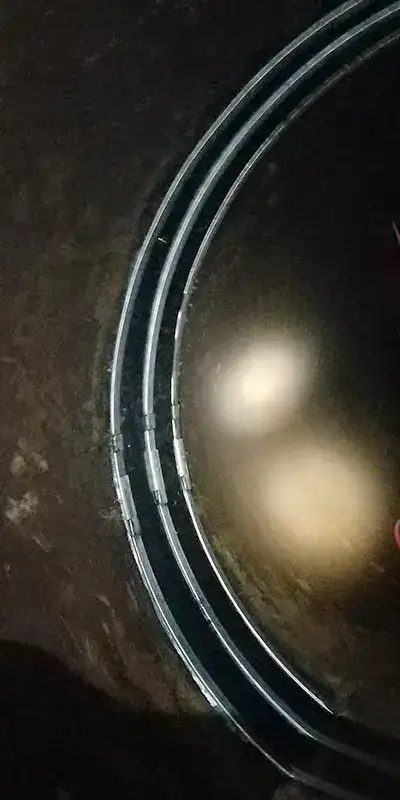

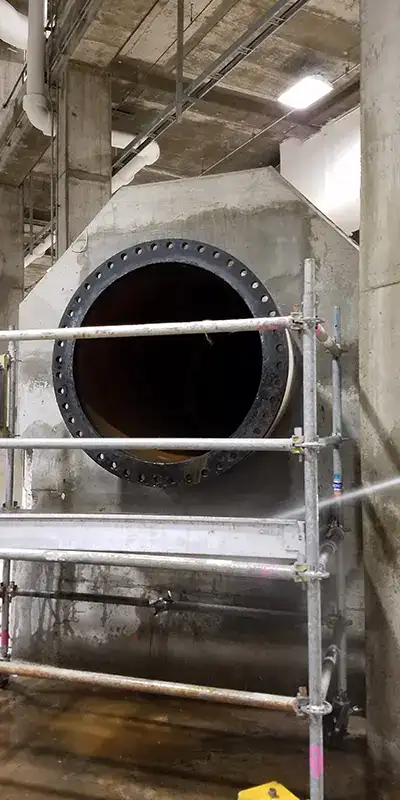

Six images showing a PVC pipe repair utilizing HydraTite

Solution
This large-diameter pipe was rehabilitated in very little time at a fraction of the cost associated with other repair options. This seal will prevent leaks at this joint for a lifetime.
