Sealing A D-Shaped Drinking Water Pipe
HydraTite® (Internal Joint Seal System)
Market
Private
Challenge
Exfiltration was discovered in a joint in a d-shaped pipe that ran between two tanks. Due to the depth of the pipe and its position between the tanks, a trenchless solution was needed. A repair was required before the erosion from the leak compromised the system further.
Engineered Solution
An Extra-Wide HydraTite Seal with anchors was the chosen solution to eliminate the leak.
![Compilation-Of-D-Shaped-HydraTite-Installation-ezgif.com-optiwebp Four images of HydraTite installed in a round pipe](https://hydratechllc.com/wp-content/uploads/2024/07/Compilation-Of-D-Shaped-HydraTite-Installation-ezgif.com-optiwebp.webp)
Scope

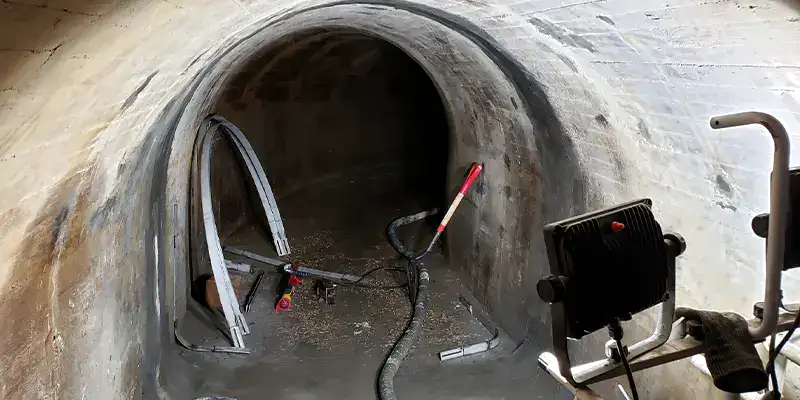

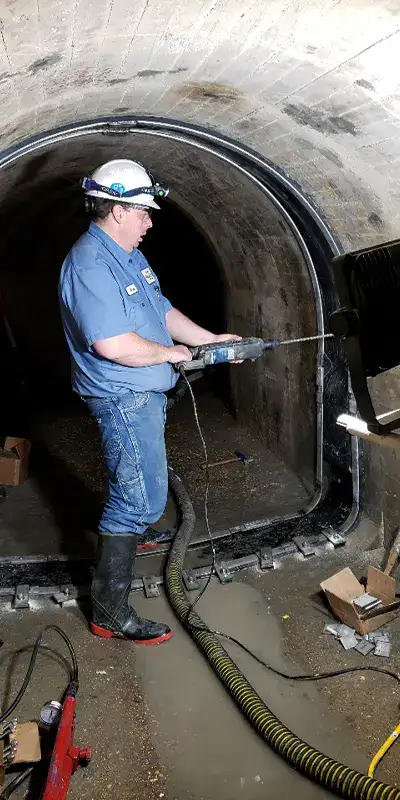

A crew of two people installed this custom-manufactured HydraTite seal in the pipe that was approximately 72” tall and wide. The rubber was positioned over the joint, and the stainless steel bands were then loosely placed over the rubber. Achor holes were then drilled along the edge of the rubber on each flat portion of the pipe’s interior surface. Anchors and hold-downs were then loosely positioned over the retaining bands. The retaining bands were expanded and locked in place. Then the hold-downs were tightened down onto the seal. Finally, The seal was air-tested to ensure that the leak had been eliminated. The entire process was completed in a single day.
Solution
The repair was completed at a fraction of the cost associated with other options. The HydraTite seal eliminated the leak very quickly and the connected tanks were undisturbed during this process.
![Size-Of-Pipe-ezgif.com-optiwebp Retaining bands loosely placed over a rubber seal](https://hydratechllc.com/wp-content/uploads/2024/07/Size-Of-Pipe-ezgif.com-optiwebp.webp)

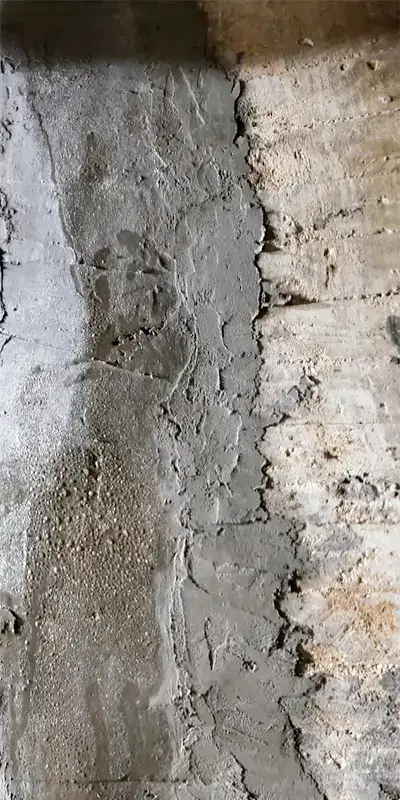

![Grout-Applied-Over-A-Pipe-Joint Retaining bands sitting at the invert of a pipe near the joints](https://hydratechllc.com/wp-content/uploads/2024/07/Grout-Applied-Over-A-Pipe-Joint.webp)

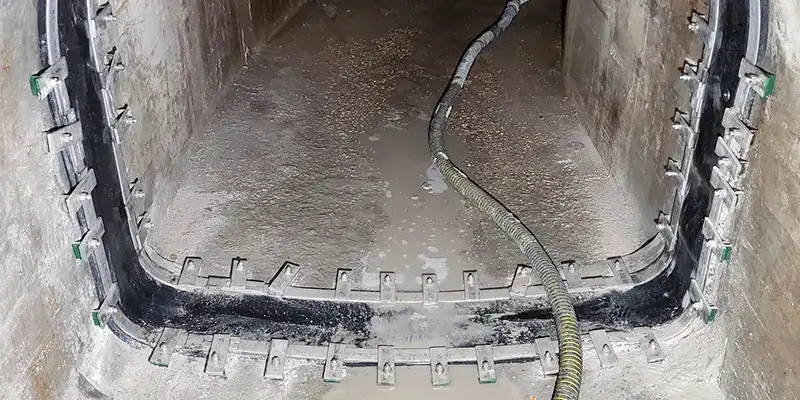

![Invert-Of-A-D-Shaped-Pipe-In-Which-HydraTite-Has-Been-Installed Two technicians installing HydraTite in a round pipe](https://hydratechllc.com/wp-content/uploads/2024/07/Invert-Of-A-D-Shaped-Pipe-In-Which-HydraTite-Has-Been-Installed.webp)
![Pipe-Joint-In-A-D-Shaped-Pipe Retaining bands loosely placed over a rubber seal](https://hydratechllc.com/wp-content/uploads/2024/07/Pipe-Joint-In-A-D-Shaped-Pipe.webp)

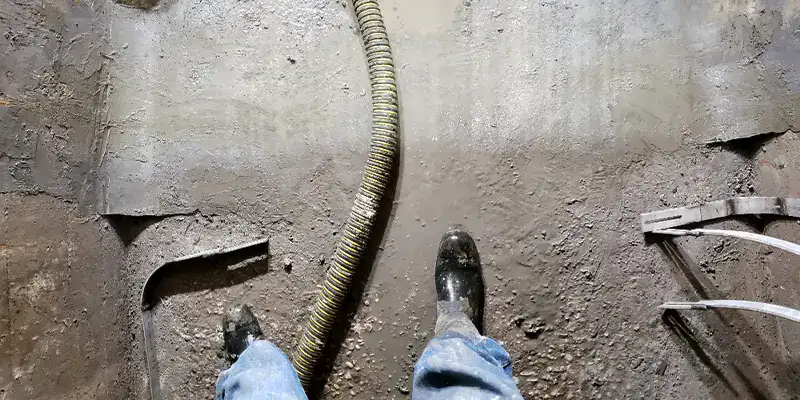

![Invert-Of-Irregular-Pipe Two technicians installing HydraTite in a round pipe](https://hydratechllc.com/wp-content/uploads/2024/07/Invert-Of-Irregular-Pipe.webp)
![A-Technician-Drilling-Anchors Retaining bands sitting at the invert of a pipe near the joints](https://hydratechllc.com/wp-content/uploads/2024/07/A-Technician-Drilling-Anchors.webp)

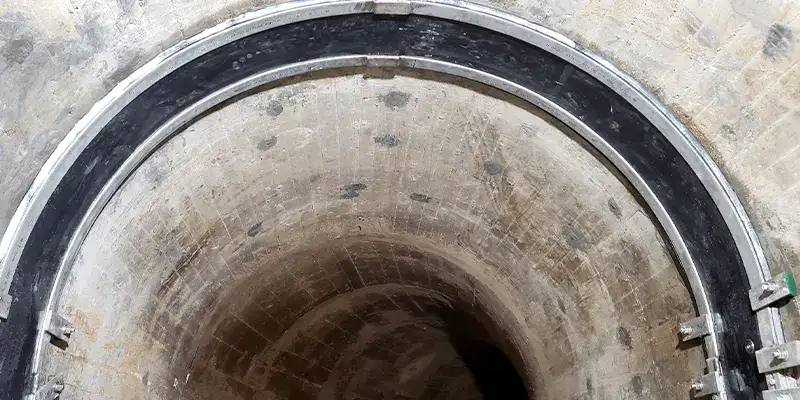

![The-Crown-Of-A-Pipe-With-HydraTite-Installed-Over-A-Joint Two technicians installing HydraTite in a round pipe](https://hydratechllc.com/wp-content/uploads/2024/07/The-Crown-Of-A-Pipe-With-HydraTite-Installed-Over-A-Joint.webp)
Previous Successful Installation

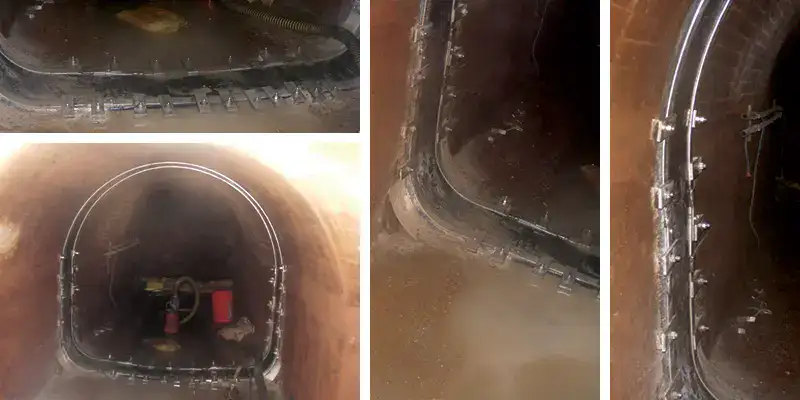

A related, sister project was completed years prior.
![Previous-D-Shaped-Pipe-Repair Four images of HydraTite installed in a round pipe](https://hydratechllc.com/wp-content/uploads/2024/07/Previous-D-Shaped-Pipe-Repair.webp)
