HydraTite internal joint seal

Separated Joints In A Corrugated Metal Pipe

HydraTite® (Internal Joint Seal System)



Market
Transportation

an exposed joint in a corrugated pipe

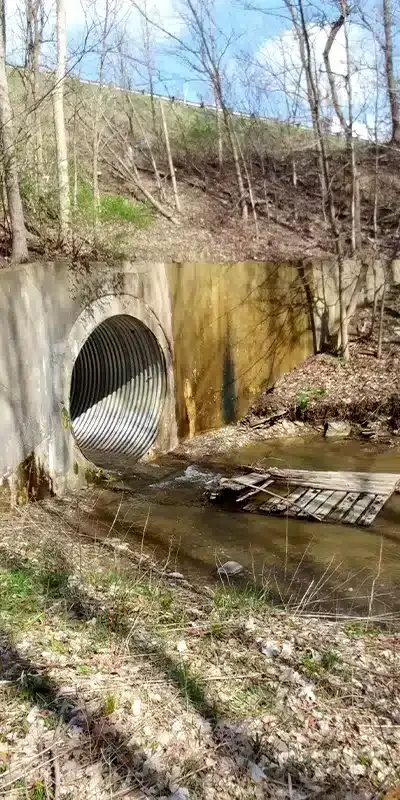

Challenge
A corrugated metal pipe had joints that were starting to separate under interstate I-71. A solution was needed that would affect traffic minimally.

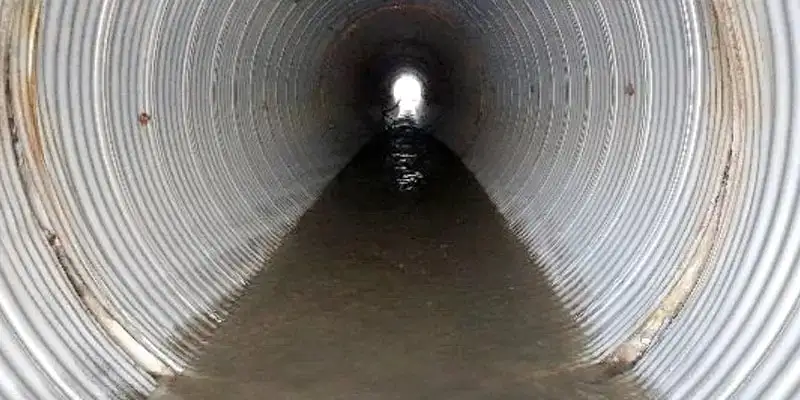

Exposed joint in a corrugated pipe

Engineered Solution

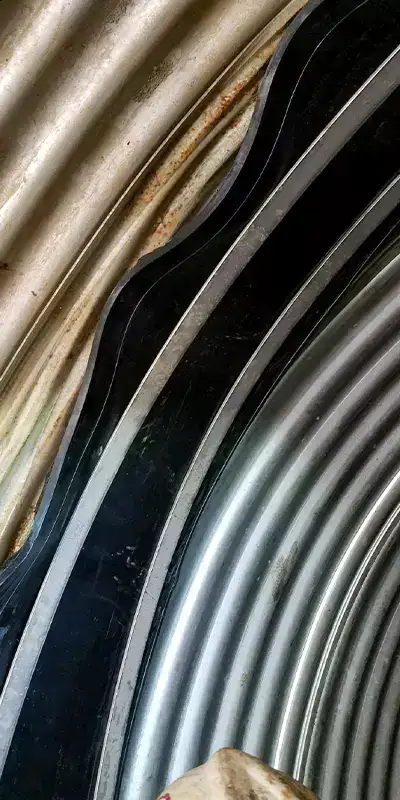

The proposed solution utilized customized HydraTite Internal Joint Seals. The degree of separation required double-wide HydraTite seals.

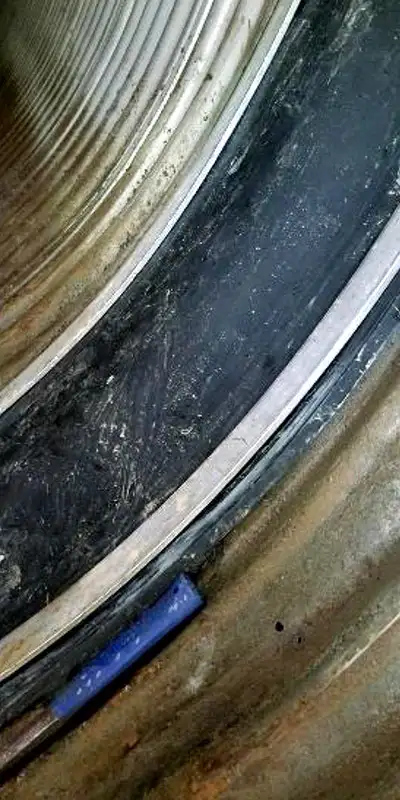

Corrugated Pipe Joint covered by HydraTite

Scope
Four joints on the 10.5’-diameter corrugated metal pipe required sealing to stop leaks and prevent further separation. Separated pipe sections were offset by as much as 5”. The corrugated metal valleys were filled with additional rubber behind the ribbed sections of each seal. Double-wide seals, which have a joint span of 16” were used for maximum flexibility. The seals were installed in 3 days.

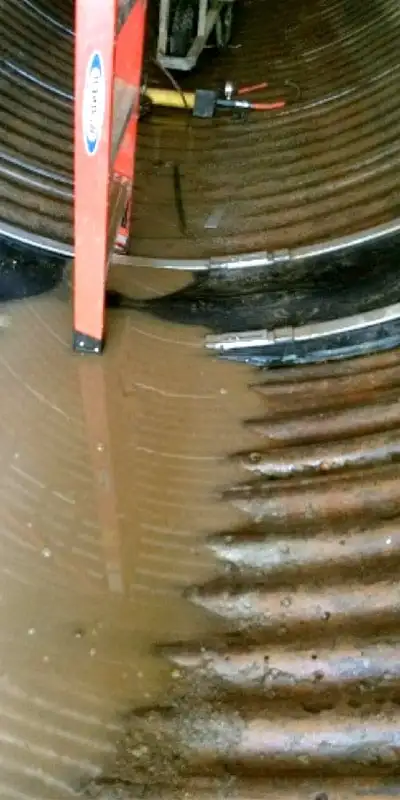

Corrugated Pipe Joint Protected by HydraTite

Solution
The project was completed at a fraction of the price and inconvenience of full replacement. The HydraTite seal will protect the above interstate from future sinkholes formed from leakage.
